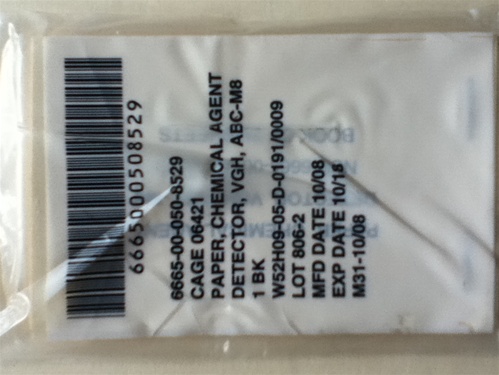

ABC–M8 VGH Chemical Agent Detector Paper
Product Code: AAAGAS-289
Our Price: $19.95
Description
ABC–M8 VGH Chemical Agent Detector Paper - new, sealed in package, expiration 10/18 M8 Chemical Agent Detection Paper - Each booklet contains 25 sheets, dimensions 10cm x 6.5cm. When exposed to a chemical agent, the sheets turn various colors depending on the agent to which they are exposed. To determine which agent is present, simply compare to the chart inside the booklet. Although the booklet contains 25 sheets, less than 1/8th of a single sheet is required for each test NSN 6665-00-050-8529 Cage 06421 Paper, Chemical Agent Detector, VGH, ABC-M8 Expiration 10/18 MIL-DTL-117H, Type III Class B, Style 2 OVERVIEW: The M8 Chemical Agent Detector Paper from TRUETECH is used to detect the presence of liquid nerve (V and G types) and blister (H-) chemical agents. M8 paper changes color in the presence of G-series nerve agents, H-series blister agents, and V-series nerve agents in liquids. DESCRIPTION: The M8 booklet is made up of (25) M8 sheets. Each page has three sensitive, indicator dyes on the page. When a sheet is brought into contact with liquid that contains nerve or blister agents, the indicator dyes in the paper react with the agents to produce colored dots. The color indicates the type of agent present. There is a color chart inside the front cover of the booklet to help identify the agent detected. The colors indicate the following: Dark Green - V-type Nerve Agents Yellow - G-type Nerve Agents Red - H-type Blister Agents USE: M8 is used by tearing out a sheet and attaching it to clothing, or some other surface so it can be exposed to drops of chemical liquid splash. The paper may also be placed in contact with a liquid that is suspected of contamination. If colored spots appear, a chemical agent is present. M8 Paper cannot be used to detect chemical agents in water, or aerosol agents in the air. It does not detect vapors. It is best suited for non-porous materials.
Features
- NSN 6665-00-050-8529
- Cage 06421
- Paper, Chemical Agent Detector, VGH, ABC-M8
- Expiration 10/18
- MIL-DTL-117H, Type III
- Class B, Style 2
